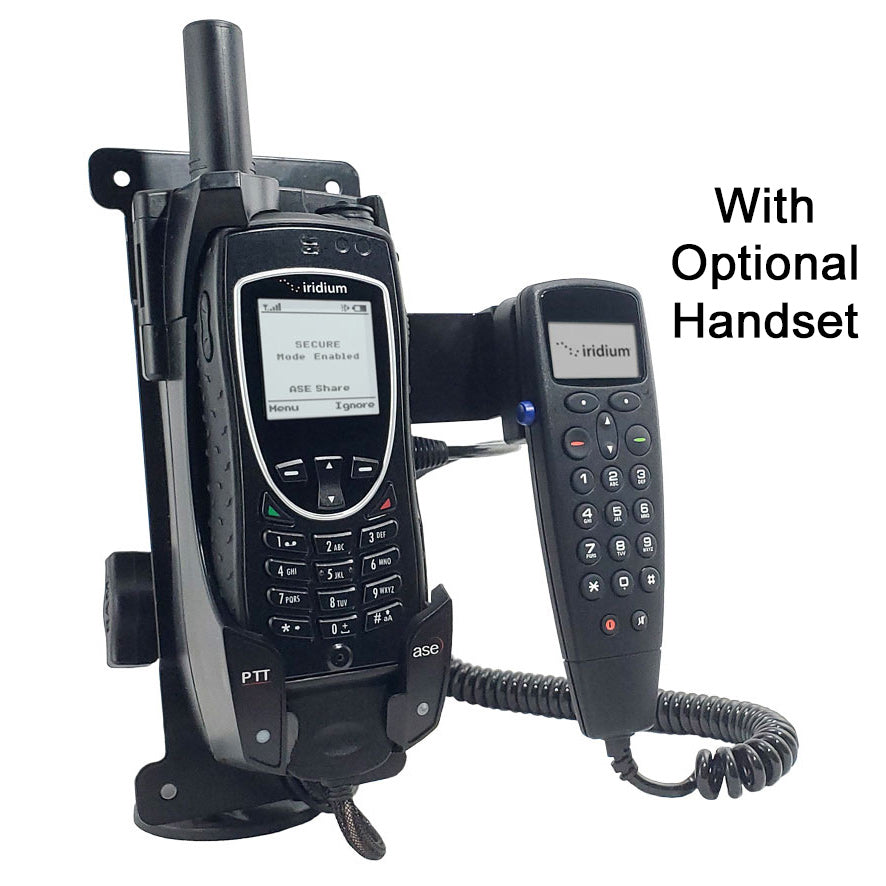

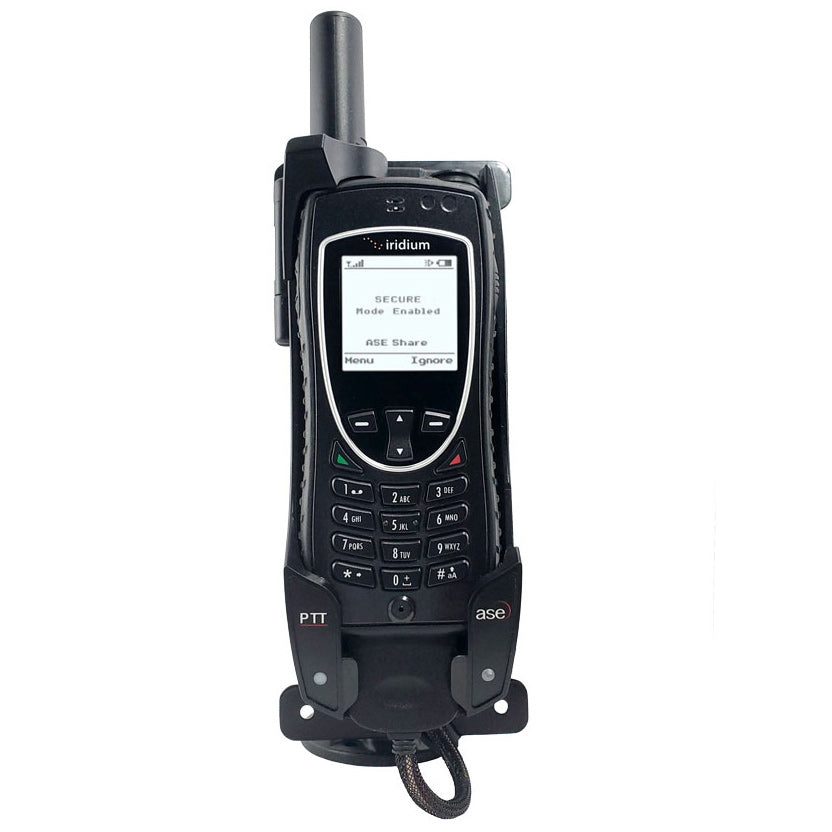

Iridium Extreme 9575A Docking Station

This 9575A Docking Station is designed for military and US government customers to use General Dynamics' Iridium 9575A satellite phones with secure module (sleeve) in vehicles, on vessels and indoors.

Features:

• Compatible with Iridium Secure Module ISM2 (secure sleeve) for EMSS contract (DoD and US government) customers
• RJ11 connection to any analog phone: POTS support
• Small profile solution with wall mounting

• Provides proper organization of dashboard, instrument panel and other working spaces

• Compatible with Iridium and GPS external antennae (purchased separately)

• AC/DC adapter

• Simple set-up and troubleshooting
• Certified by Iridium


Specifications:

• Compatibility: Iridium 9575A with ISM2 secure module* (sleeve)
• Ports: RJ-11 SLIC for analog phone or PBX, 2.5mm audio jack, RJ45 DPL bus, RJ45 Expansion I/O, power input
• Antenna Connections: Iridium TNC-F; GPS SMA-F
• Operating temperatures: +14 to 131° F (-10 to 55° C)
• Exposure: Indoor, protected location per IEC 60945
• AC Mains: 115/230 VAC 50/60Hz to 12 VDC; adapter provided
• Operating voltage: 10—32 VDC
• Power consumption: 12W peak
• Dimensions: 13 x 6 x 4.5 in / 330 x 150 x 115 mm
• Weight: 3.5 lbs (1.6 kg)
• Mounting: Swivel desk or wall mount available
• ASE P/N: ASE-9575A-HQ-DOD

In the box:

• Iridium 9575A docking cradle with POTS support
• Wall mount bracket
• AC/DC power adapter

* Iridium Secure Module 2 is sold separately by DISA or General Dynamics. Restricted availability to US DoD and US government customers only.
